Electrical Pancake Box - A Complete Guide

Oleh Jenny Zieme June 13, 2023 Post a Comment

Electrical pancake boxes are a crucial component in every residential and commercial building's electrical infrastructure. They're used to mount light fixtures, switches, and outlets onto ceilings and walls, and they keep the wiring hidden and organized. In this comprehensive guide, we'll discuss everything you need to know about electrical pancake boxes, including their installation process, size variations, and common uses.

1. What is an Electrical Pancake Box?

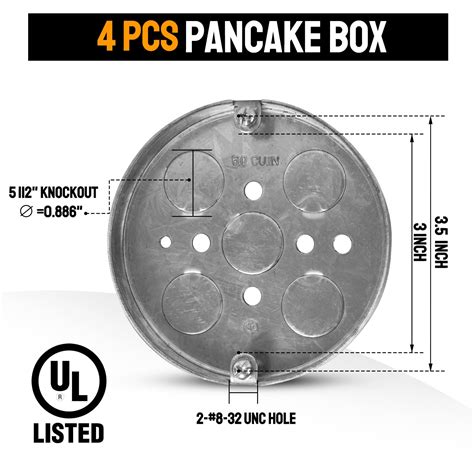

An electrical pancake box is a small, round metal box that is mounted onto a ceiling or wall. It's called a "pancake" box because it's flat and thin like a pancake. This type of electrical box is commonly used when installing light fixtures, ceiling fans, and other types of electrical equipment that require a secure mounting point.

Electrical pancake boxes are usually made of steel or aluminum and come in various sizes to accommodate different applications. The most common sizes are 3 inches and 4 inches in diameter.

2. Uses of Electrical Pancake Boxes

Electrical pancake boxes are versatile and can be used for a variety of purposes. Here are some common uses:

Mounting light fixtures: Pancake boxes are often used to mount light fixtures onto ceilings. The fixture is attached to the box using screws or bolts.
Installing ceiling fans: Ceiling fans are heavier than light fixtures and require a more robust mounting system. An electrical pancake box is an excellent choice for this application.
Connecting wires: Pancake boxes are also used to connect wires from one location to another. They provide a secure and concealed means of running wires through walls and ceilings.

3. Types of Electrical Pancake Boxes

There are several types of electrical pancake boxes available, and each one has specific features that make it suitable for different applications. Here are some of the most common types:

Round pancake box: This is the standard type of pancake box and is used for a wide variety of applications.
Square pancake box: This type of pancake box is designed for mounting light fixtures that have square or rectangular bases.
Octagon pancake box: An octagon pancake box is used when mounting ceiling fans or other heavy fixtures.

4. Installation Process

Installing an electrical pancake box is relatively straightforward, but it does require some skill and knowledge of electrical wiring. Here's a general overview of the installation process:

Turn off the power: Before ing any electrical work, you must turn off the power to the circuit you'll be working on.
Mark the location: Use a pencil or marker to mark the location where the box will be installed.
Cut the hole: Use a drywall saw to cut a hole in the ceiling or wall where the box will be installed.
Insert the box: Place the pancake box into the hole and align it with the marks you made earlier.
Secure the box: Use screws or nails to secure the box to the ceiling or wall.
Connect the wires: Connect the wires from the fixture or device you're installing to the wires in the box.
Attach the fixture: Finally, attach the fixture to the box using screws or bolts.

It's important to follow all safety guidelines and local building codes when installing electrical pancake boxes.

5. Size Variations

Electrical pancake boxes come in various sizes, depending on the application. The most common sizes are 3 inches and 4 inches in diameter. However, larger sizes are also available for heavier fixtures.

It's crucial to choose the right size box for your application as using a box that is too small can be dangerous and cause fires.

6. Materials Used

Electrical pancake boxes are typically made of steel or aluminum. Steel boxes are more durable and suitable for heavy-duty applications, while aluminum boxes are lightweight and easier to install.

It's essential to choose a box that is compatible with the fixture or device you're installing.

7. Weight Capacity

Electrical pancake boxes have weight capacity ratings that indicate how much weight they can support. The weight capacity varies depending on the size and type of box.

It's crucial to choose a box that has a weight capacity that exceeds the weight of the fixture or device you're installing.

8. Junction Boxes vs. Pancake Boxes

Junction boxes and pancake boxes are both used to connect wires, but they have different applications. A junction box is designed to hold multiple wires and make electrical connections, while a pancake box is designed to mount fixtures onto ceilings and walls.

It's important to use the right type of box for your application to ensure safety and compliance with building codes.

9. Benefits of Using Electrical Pancake Boxes

Using electrical pancake boxes has several benefits, including:

Secure mounting: Pancake boxes provide a secure mounting point for fixtures and devices.
Concealed wiring: Wires are concealed within the box, providing a neat and organized look.
Versatility: Pancake boxes can be used for a variety of applications, making them a versatile choice for any electrical project.
Easy installation: Pancake boxes are easy to install, even for novice DIYers.

10. Common Issues with Electrical Pancake Boxes

While electrical pancake boxes are generally safe and reliable, there are some common issues that may arise, including:

Overloading: Using a box that is too small or has a weight capacity that is too low can cause overloading and potentially cause fires.
Incorrect installation: Improper installation can also cause safety hazards and damage to fixtures and devices.
Compatibility issues: Using the wrong type of box or incompatible materials can cause compatibility issues and potentially cause damage to fixtures and devices.

11. Cost of Electrical Pancake Boxes

The cost of electrical pancake boxes varies depending on the size, material, and brand. On average, a standard 3-inch pancake box costs between $1 and $3, while a larger box for heavy-duty applications can cost up to $20.

12. Best Brands of Electrical Pancake Boxes

There are several reputable brands of electrical pancake boxes available, including:

Arlington
Hubbell
Madison Electric Products
Thomas & Betts

It's essential to choose a reliable and reputable brand to ensure quality and safety.

13. Maintenance and Care

Electrical pancake boxes require minimal maintenance and care. However, it's essential to inspect them periodically to ensure they're secure and free from damage.

If the box becomes damaged or corroded, it should be replaced immediately to prevent safety hazards.

14. Safety Considerations

When installing and using electrical pancake boxes, it's crucial to follow all safety guidelines and local building codes. Here are some safety considerations to keep in mind:

Turn off the power before ing any electrical work.
Use the right size and type of box for your application.
Choose compatible materials and hardware.
Properly install and secure the box.
Regularly inspect the box for damage or corrosion.

15.

Electrical pancake boxes are a critical component in any building's electrical infrastructure. They provide a secure and concealed means of mounting fixtures and devices onto ceilings and walls. By following the installation tips and safety guidelines outlined in this guide, you can ensure the safe and reliable use of electrical pancake boxes.

Frequently Asked Questions (FAQs)

What is an electrical pancake box used for?

An electrical pancake box is used to mount light fixtures, switches, and outlets onto ceilings and walls. It provides a secure and concealed means of running wires through walls and ceilings.

What sizes do electrical pancake boxes come in?

Electrical pancake boxes come in various sizes, with the most common sizes being 3 inches and 4 inches in diameter. Larger sizes are also available for heavy-duty applications.

How do you install an electrical pancake box?

To install an electrical pancake box, turn off the power, mark the location, cut the hole, insert the box, secure it with screws or nails, connect the wires, and attach the fixture.

What materials are electrical pancake boxes made of?

Electrical pancake boxes are typically made of steel or aluminum. Steel boxes are more durable and suitable for heavy-duty applications, while aluminum boxes are lightweight and easier to install.

What is the weight capacity of an electrical pancake box?

The weight capacity of an electrical pancake box varies depending on the size and type of box. It's crucial to choose a box that has a weight capacity that exceeds the weight of the fixture or device you're installing.

What are the best brands of electrical pancake boxes?

Some of the best brands of electrical pancake boxes include Arlington, Hubbell, Madison Electric Products, and Thomas & Betts.

How much does an electrical pancake box cost?

The cost of an electrical pancake box varies depending on the size, material, and brand. On average, a standard 3-inch pancake box costs between $1 and $3.

What are some common issues with electrical pancake boxes?

Common issues with electrical pancake boxes include overloading, incorrect installation, and compatibility issues.

How do you maintain and care for an electrical pancake box?

Electrical pancake boxes require minimal maintenance and care. However, it's essential to inspect them periodically to ensure they're secure and free from damage.

What are some safety considerations when using electrical pancake boxes?

When using electrical pancake boxes, it's essential to follow all safety guidelines and local building codes. This includes turning off the power before ing any electrical work, choosing the right size and type of box for your application, and regularly inspecting the box for damage or corrosion.
